Modular
Vises

Forget cramped setups and wasted machine space. Our SVF Modular Vise System will unlock the full potential of your machine. Imagine seamlessly configuring workholding for any part, maximizing every inch of your machine’s real estate. The result? A dramatic boost in production, with fewer tool changes and streamlined workflows. That right there is a true competitive edge. Not only will you churn out parts faster, but you’ll slash setup times, saving you both time and money. Ditch the limitations of traditional vises and unleash the power of modular workholding. It’s your shortcut to a leaner, meaner, and infinitely more productive operation.

Why should you use Modular Vises?

Think of it as a blank canvas for clamping creativity, unleashing endless possibilities for efficient, space-saving setups. Break free from the limitations of traditional vises and embrace the flexibility of our SVF Modular Vise System. These vises play nice with all our tombstones, angle plates, and sub plates, creating a modular ecosystem that adapts to your evolving needs.

Traditional Vises

TombstoneCity™ SVF Series Vises

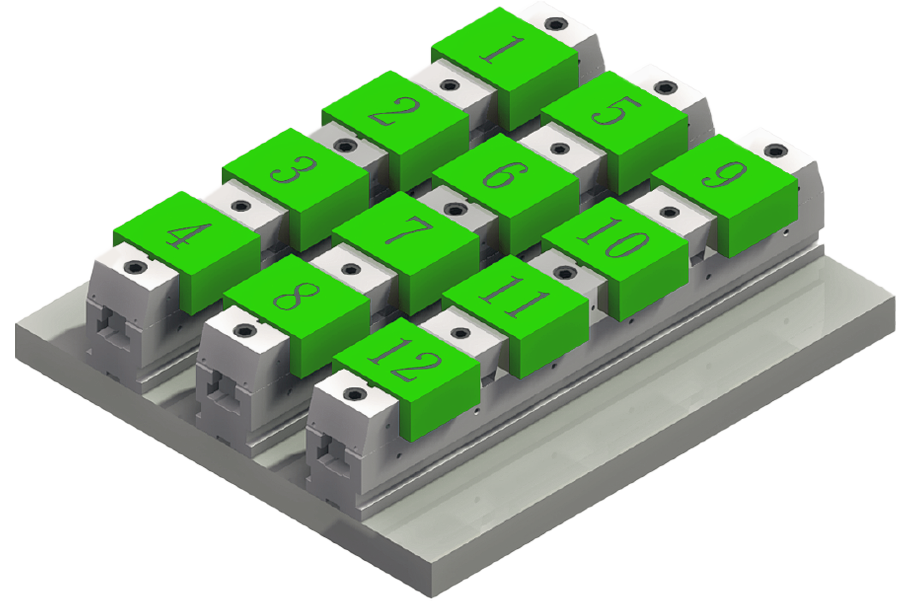

Get more parts in a smaller footprint
compared to traditional vises.

Modular Vise Kits

VISE KITS

Ditch the single-use vise blues! Our vise kits are built for versatility, packed with a sturdy main vise body and enough jaws to securely clamp four parts at once. The beauty lies in its versatility and how easy it is to expand your workholding capabilities thanks to our full line of accessories.

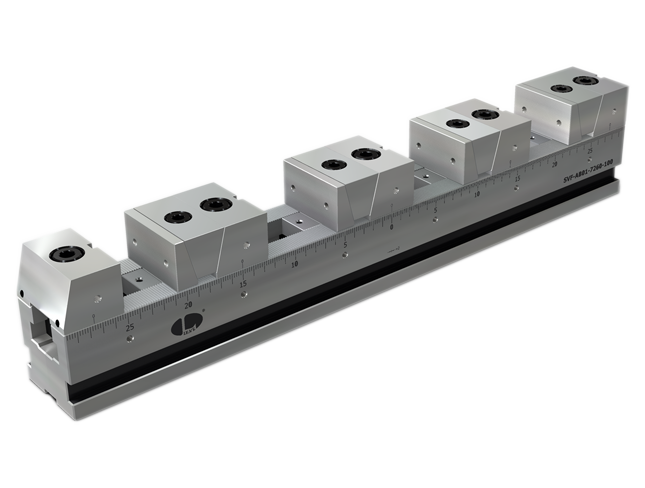

SVF Type A Vise

One-Way Clamping

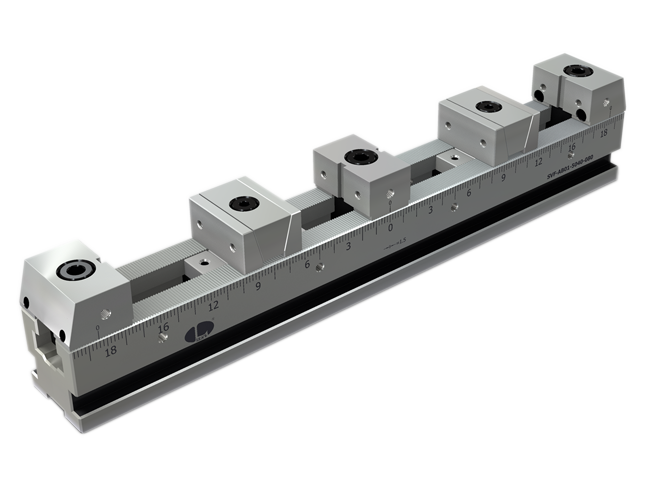

SVF Type BE Vise

Two-way Clamping / High-Density

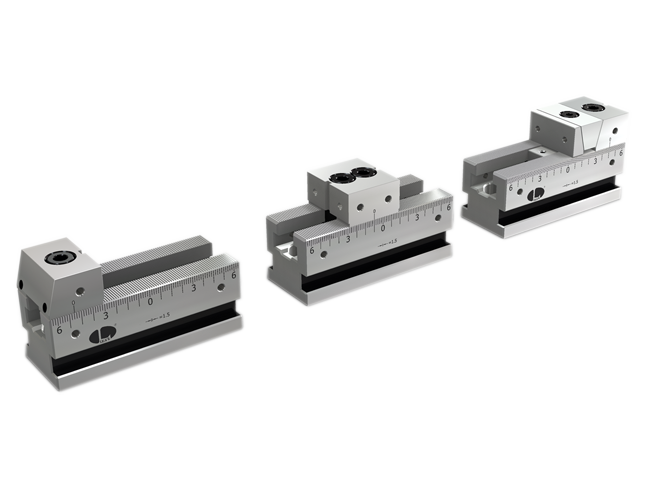

SVF Type C Vise

Modular Clamping

Application Examples

EXAMPLES

The SVF Modular Vise System.
Think of it as a blank canvas for clamping creativity, unleashing endless possibilities for efficient, space-saving setups. So, break free from the limitations of rigid vises and embrace the flexibility of modular vises.

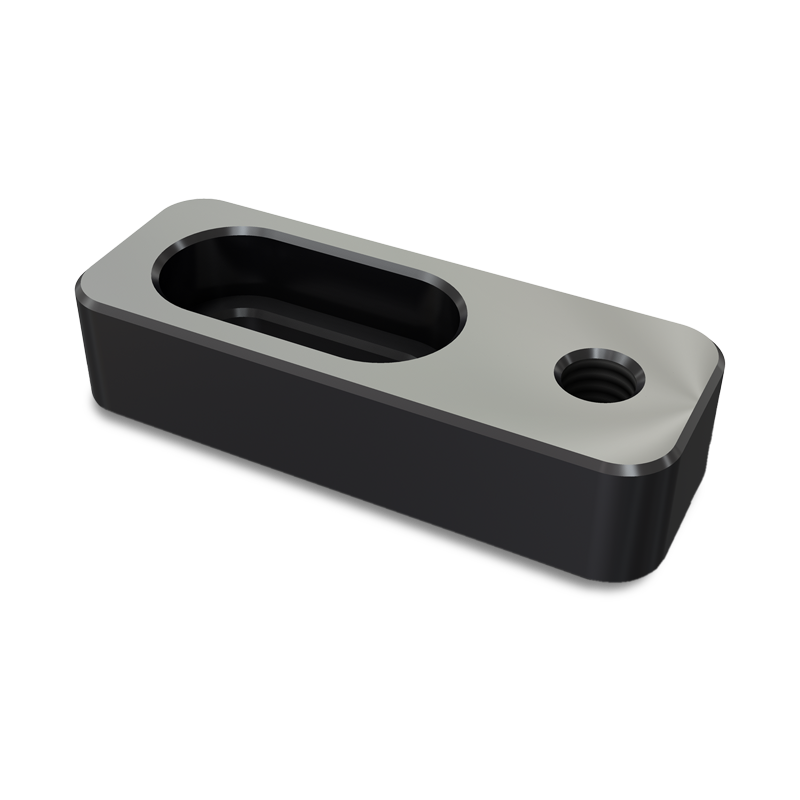

Keep your parts aligned using our S06 Work Stops

Easily add or remove jaws to grip one large part or several smaller ones.

Get a grip on your round parts with our S03 Hardened V-Jaws

Get more parts in a smaller footprint with our two-way clamping/high-density SVF-BE Vise.

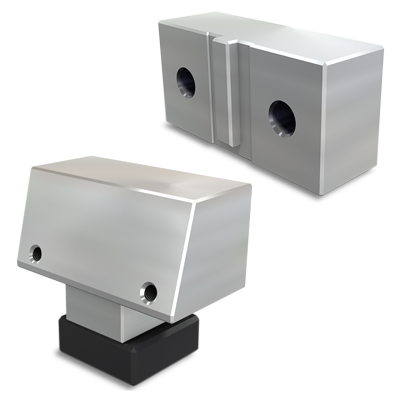

Mill out a nest for your parts with our S01 & S02 Soft Jaws.

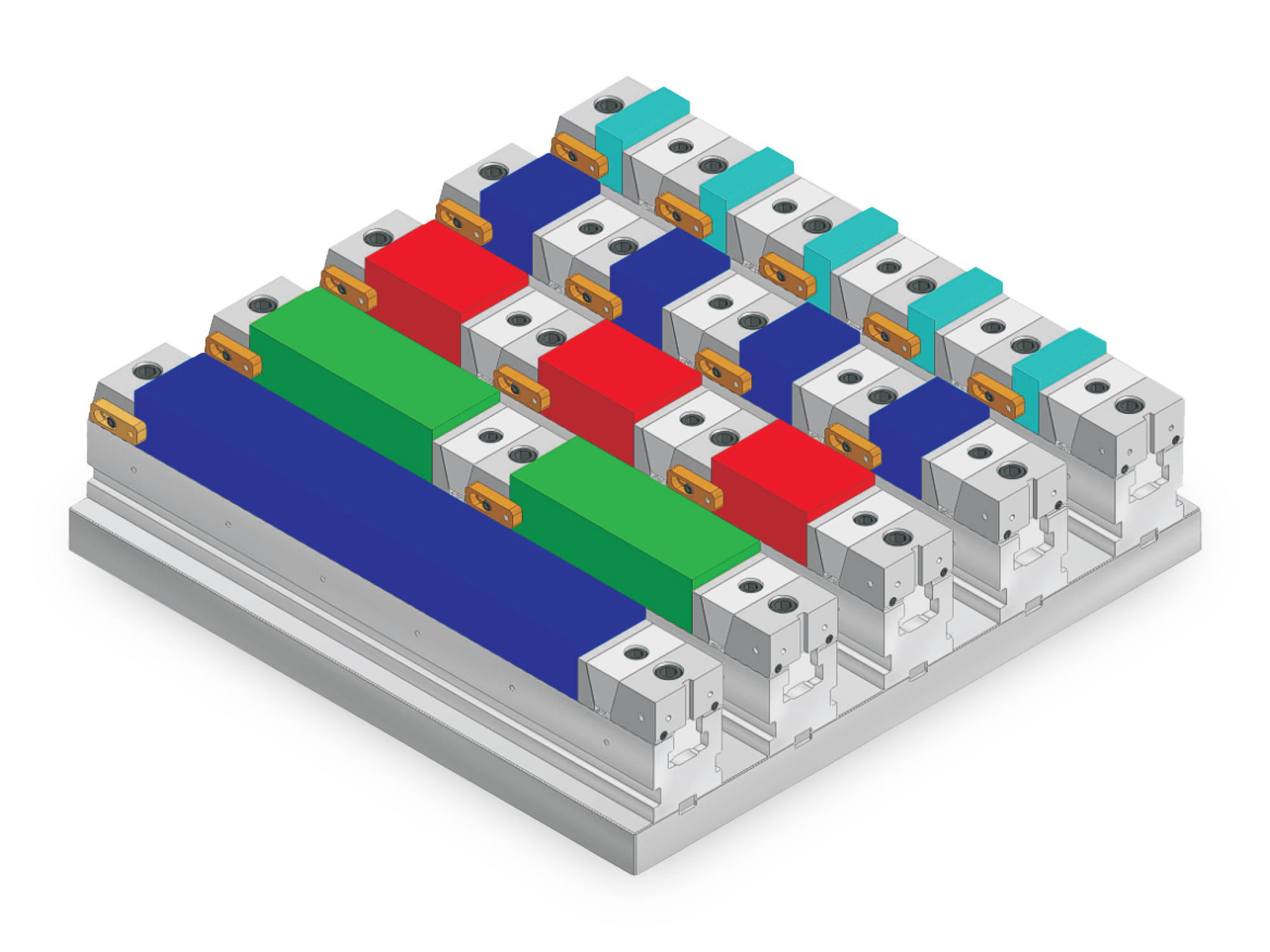

Optimize your machine real estate to its fullest extent.

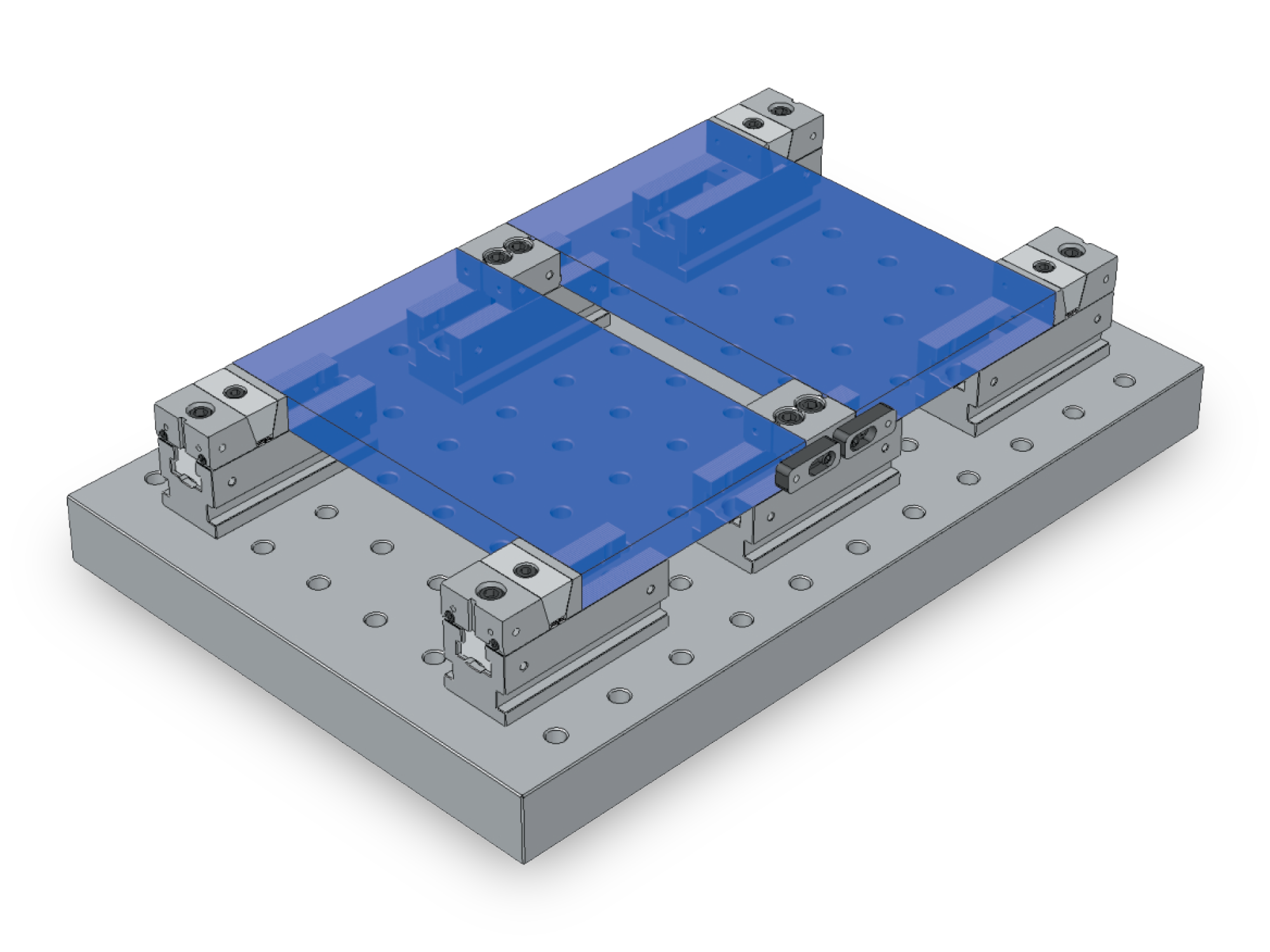

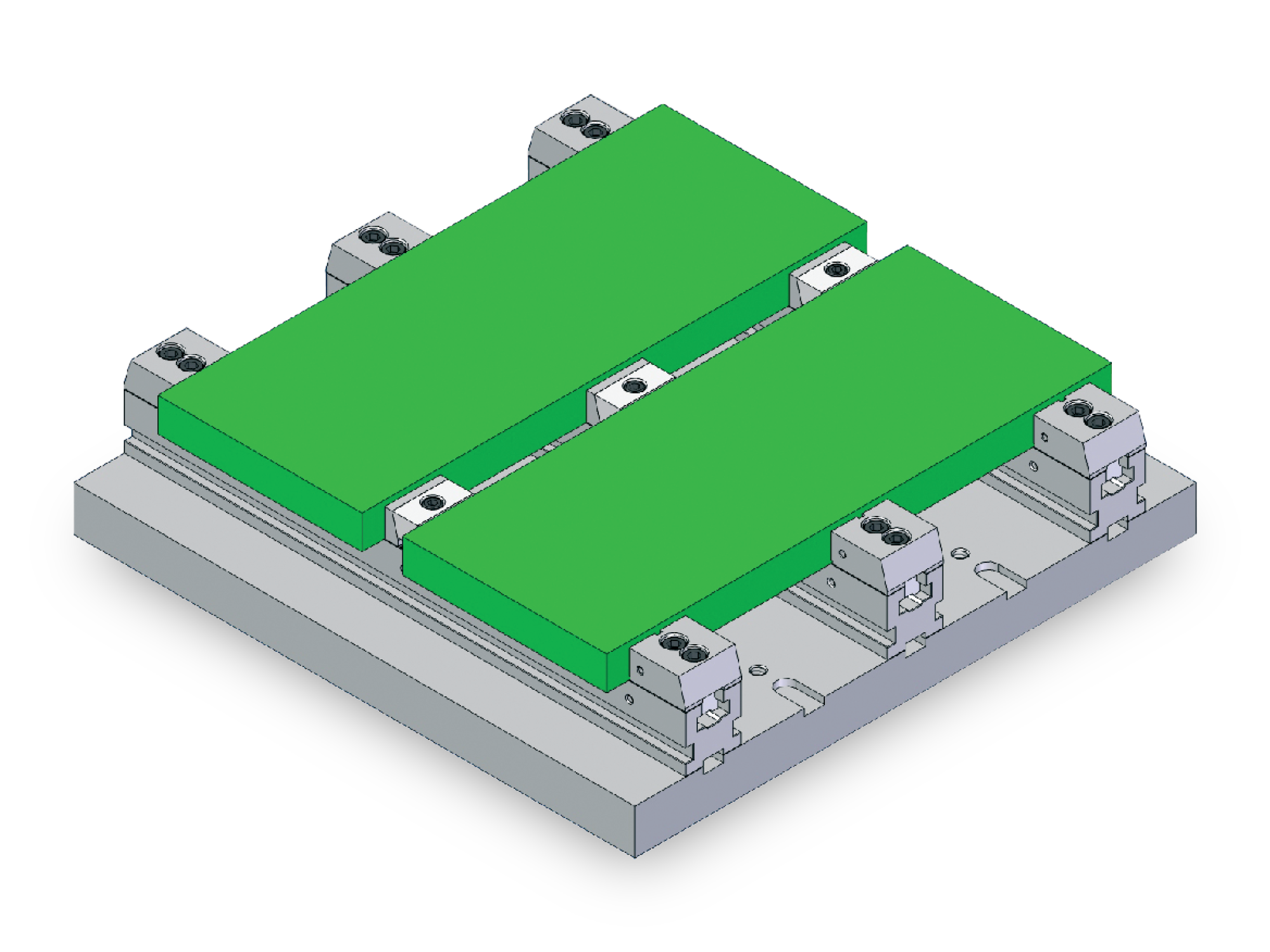

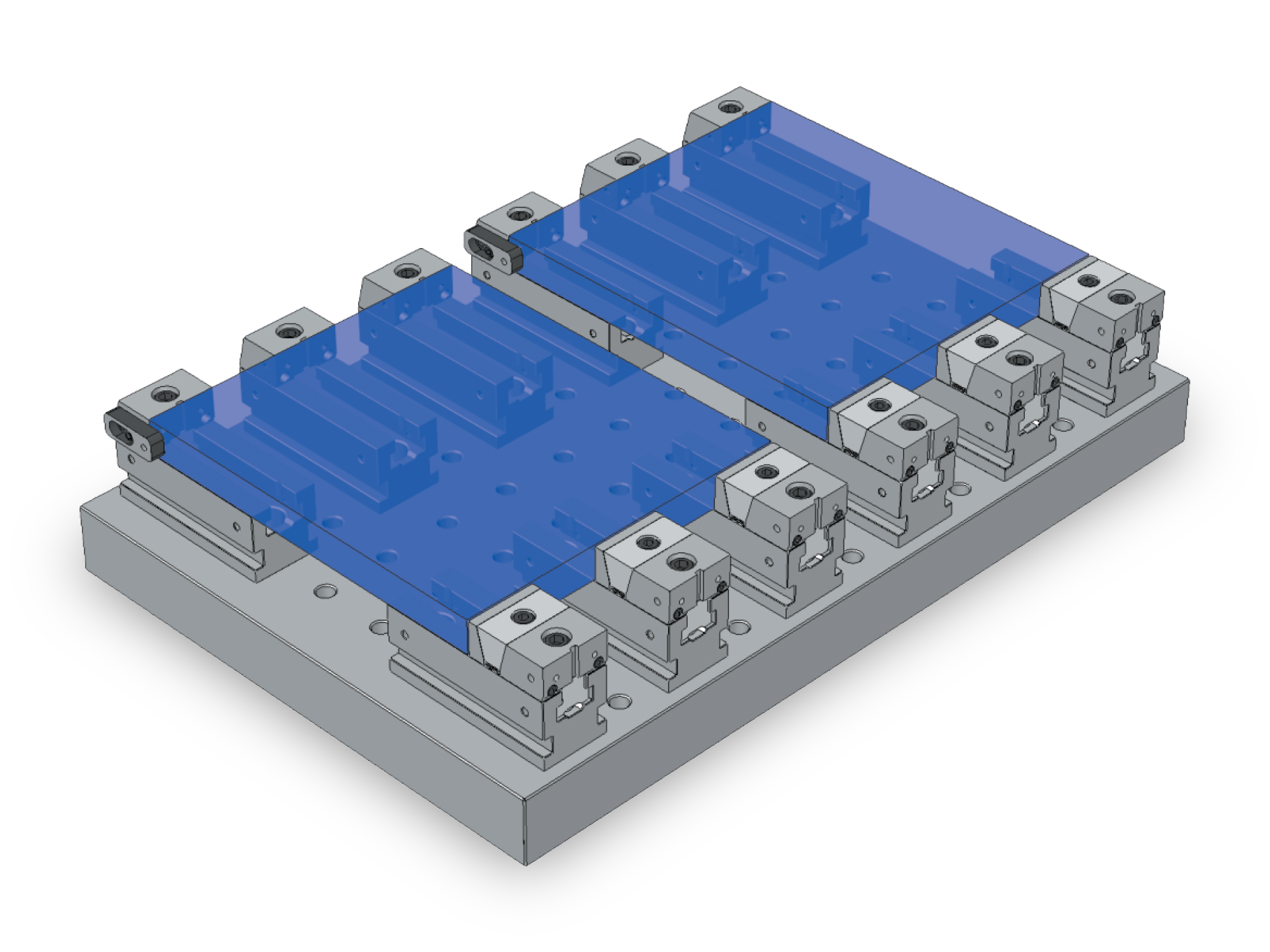

Use vises in tandem to grip extra large parts.

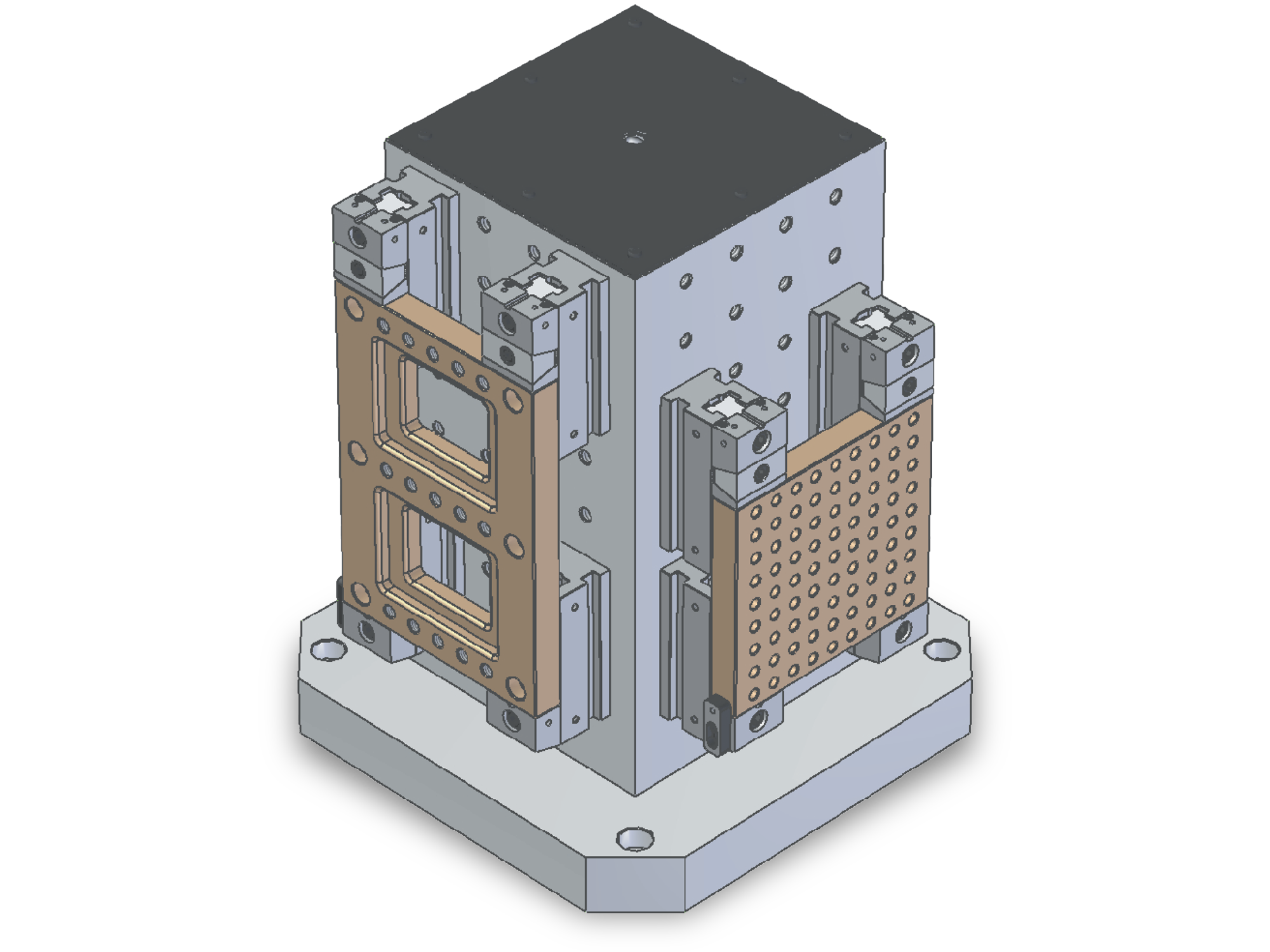

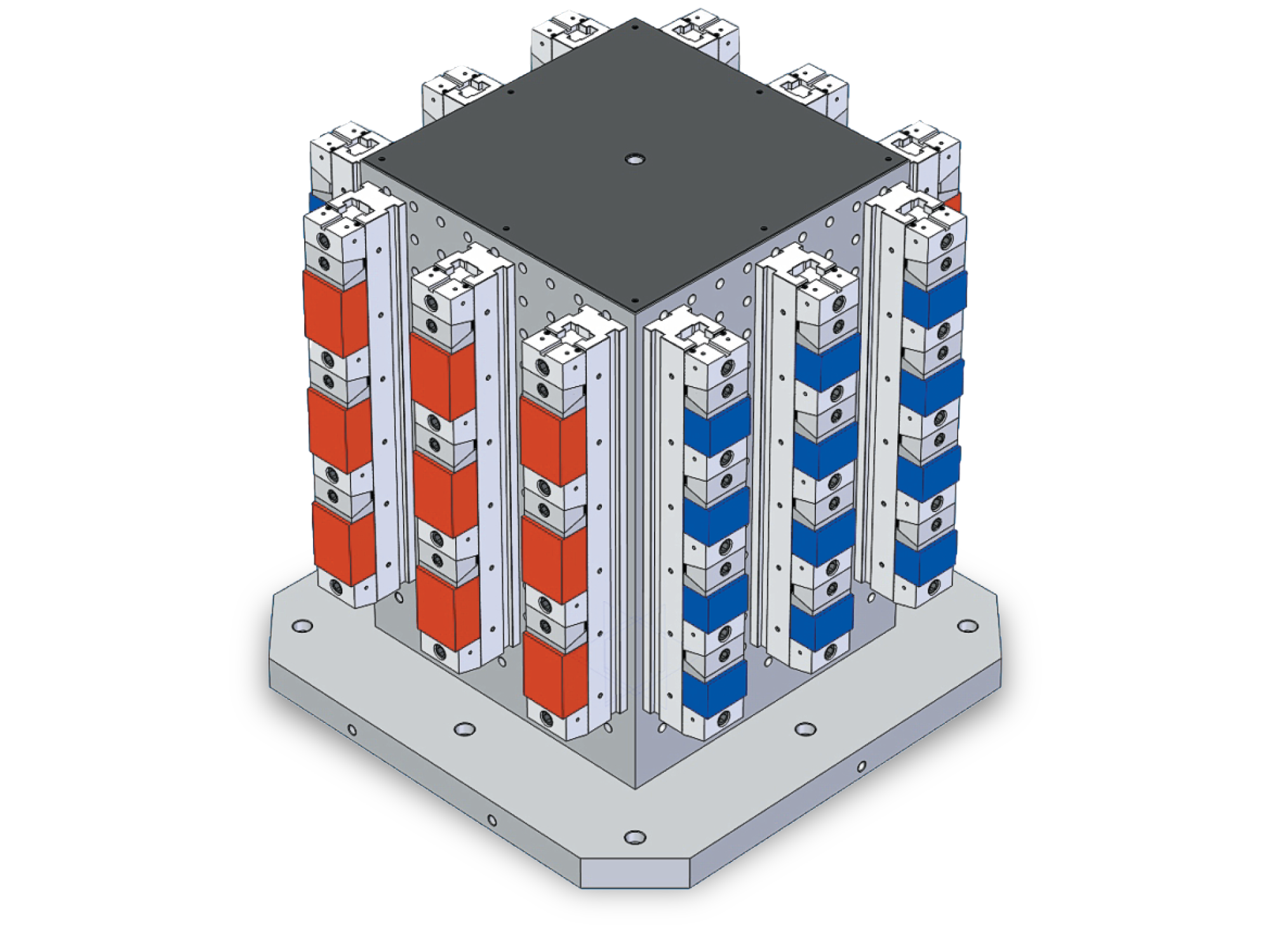

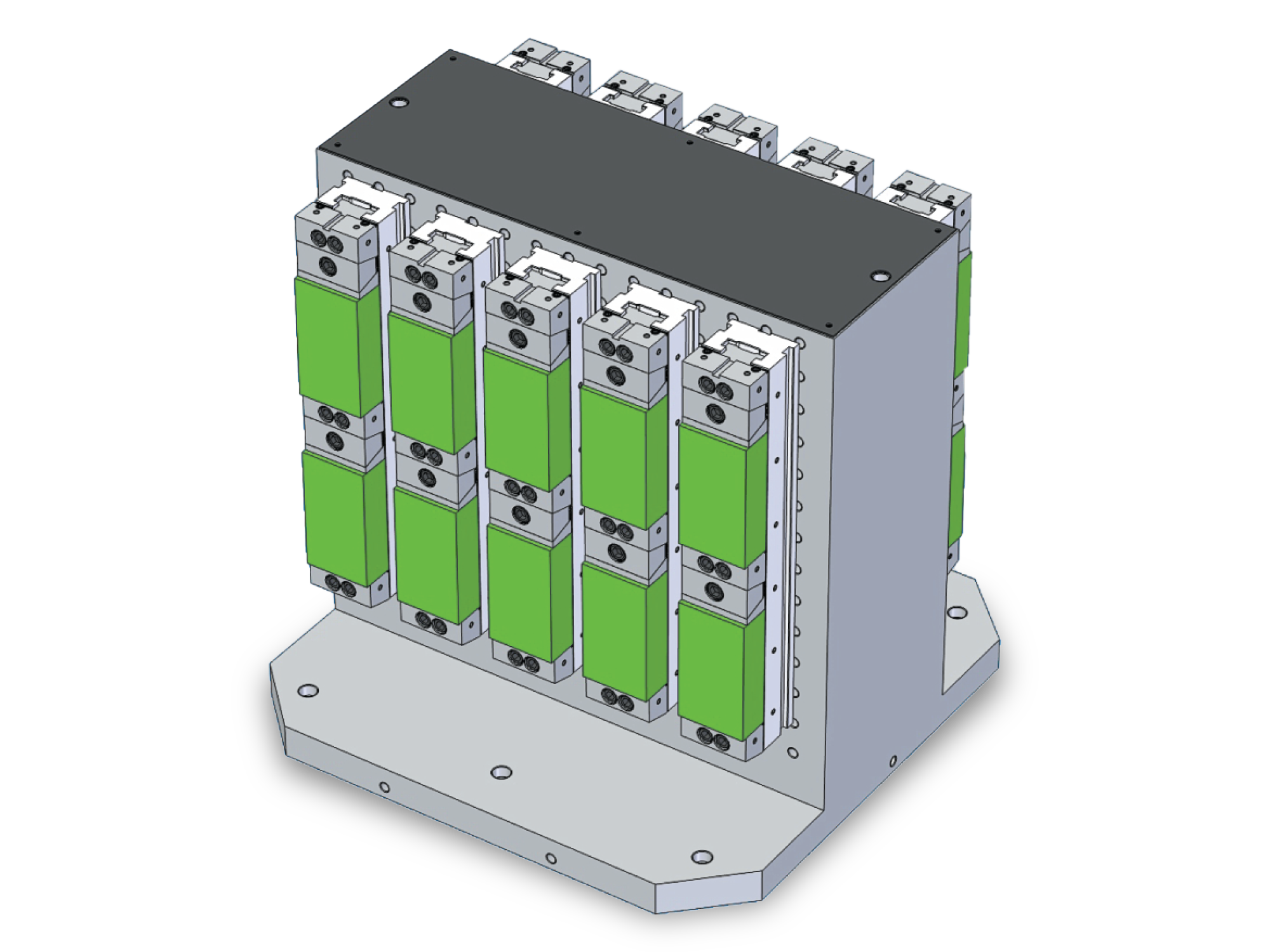

Easily mount vises on our BP08 tombstones. Different operations with multiple parts on each side, ready to go to work on your horizontal machining center.

BP11 T-Column tombstone with our SVF-A style vises on both sides.

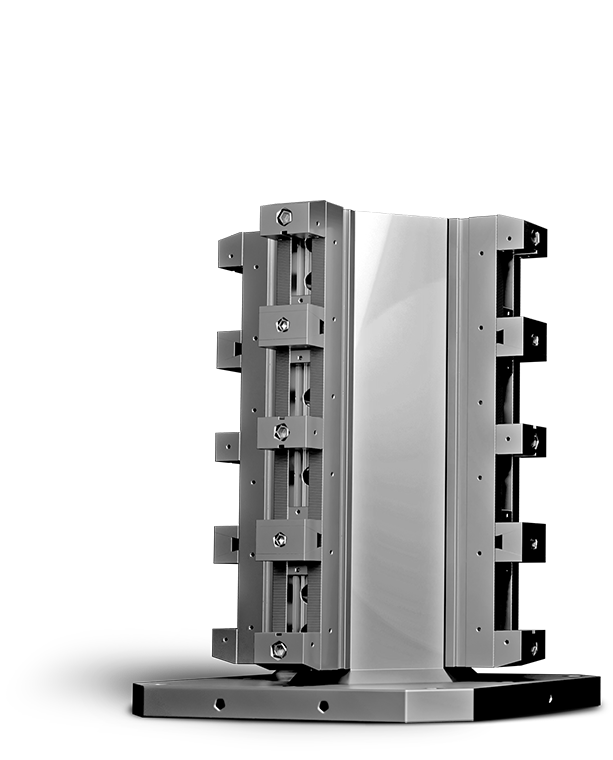

Our CB8 Octagonal cube tombstones are built for mounting four vise setups simultaneously.

SVF-C modular vises can be used in tandem.Light weight, high flexibility. — SVF-C modular vises can be used in tandem.
Light weight, high flexibility.

These vises are compatible with all of our tombstones, angle plates, and sub plates, creating a modular workholding ecosystem that can grow and adapt to meet your evolving needs.

Accessories

ACCESSORIES

Get a grip on your workholding!

We carry a full line of vise accessories that are compatible with our SVF Modular Vise System.

Main Body

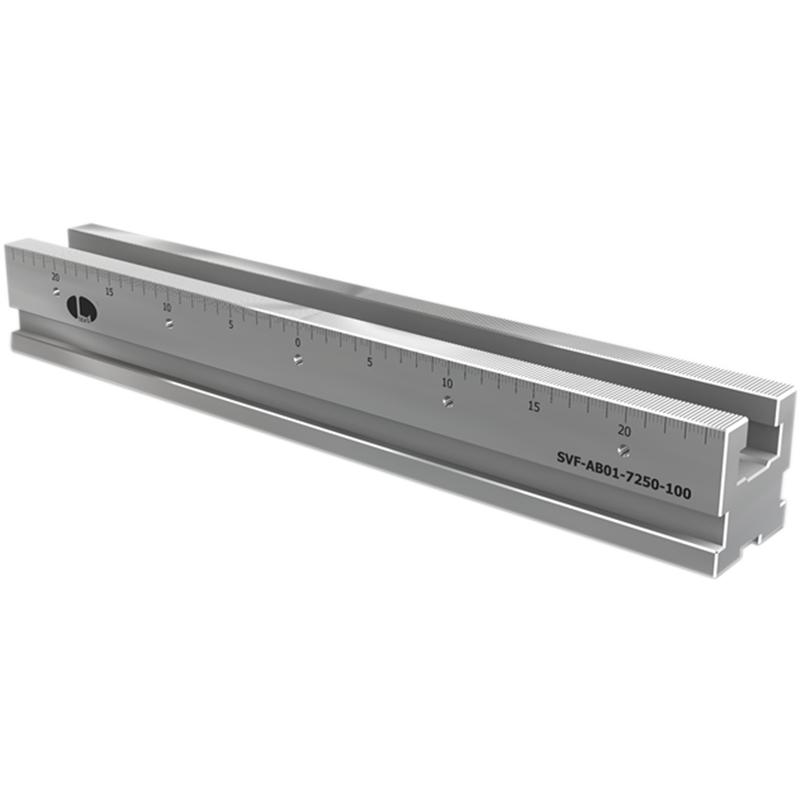

SVF-AB01 vise rails are the backbone of our SVF modular vise system. Available in 50mm, 72mm and 100mm widths and 16”, 20”, 24” and 28” lengths.
Stationary Wedges

Stationary wedges are available in both standard duty and heavy duty. Step jaw and serrated models are also available.

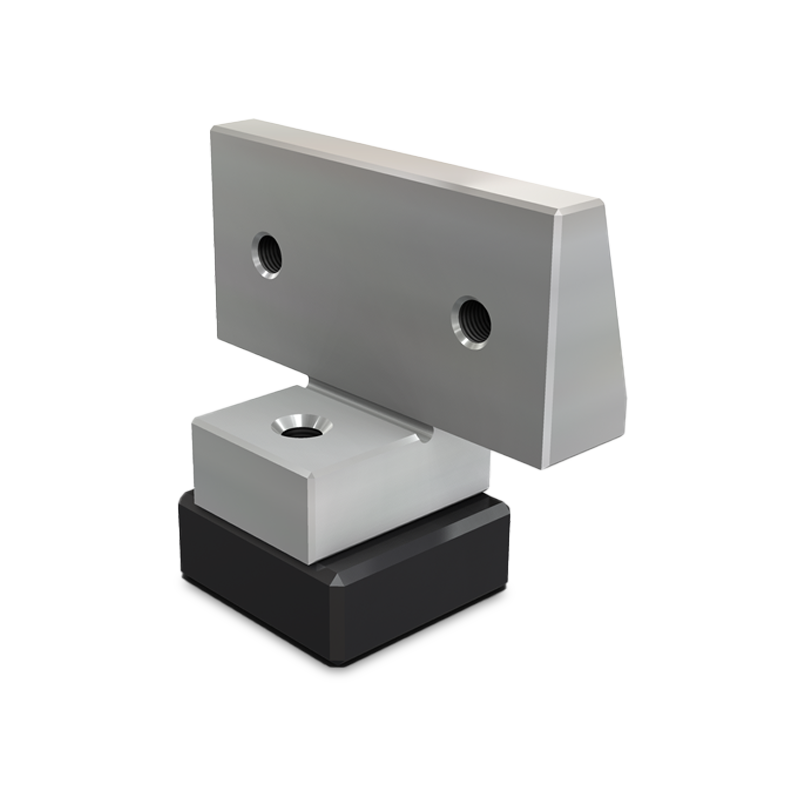

Moveable Jaws

Moveable jaws are available in plain, serrated and step jaw models.

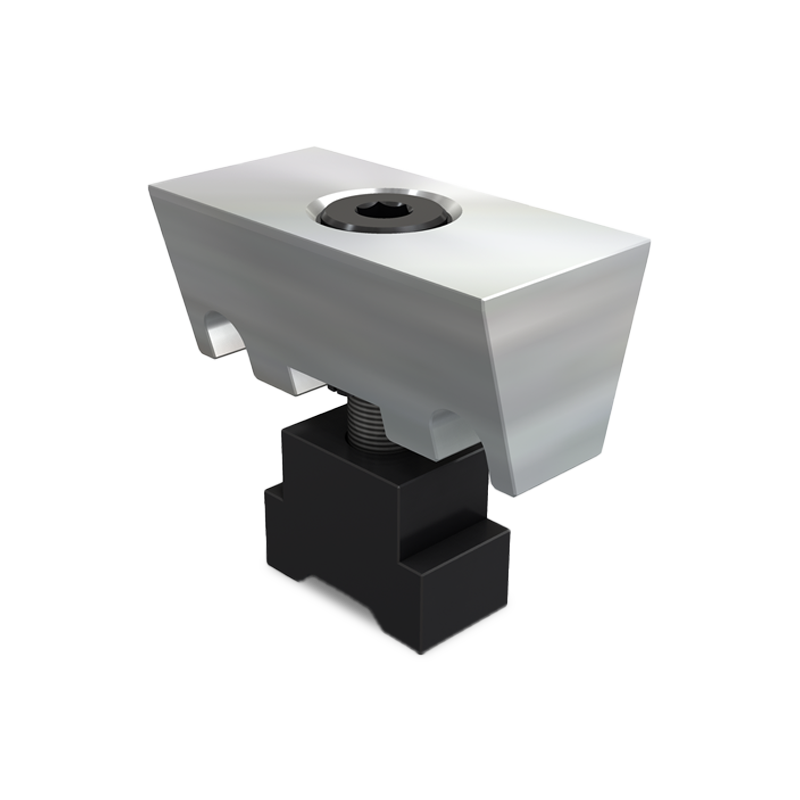

Moveable Wedges

Moveable wedges are used in both our SVF-A and SVF-BE clamping styles.

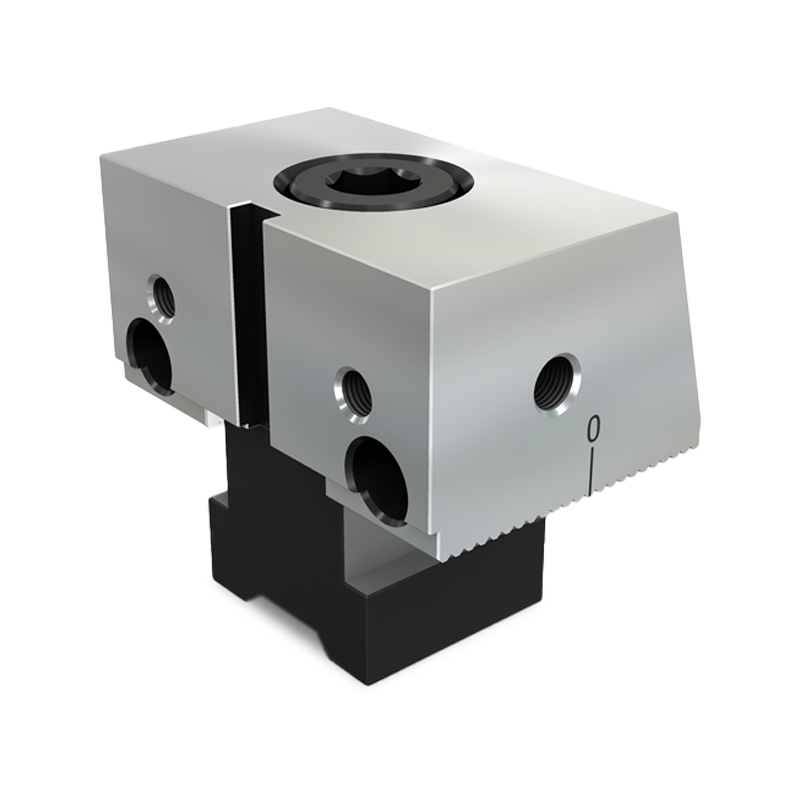

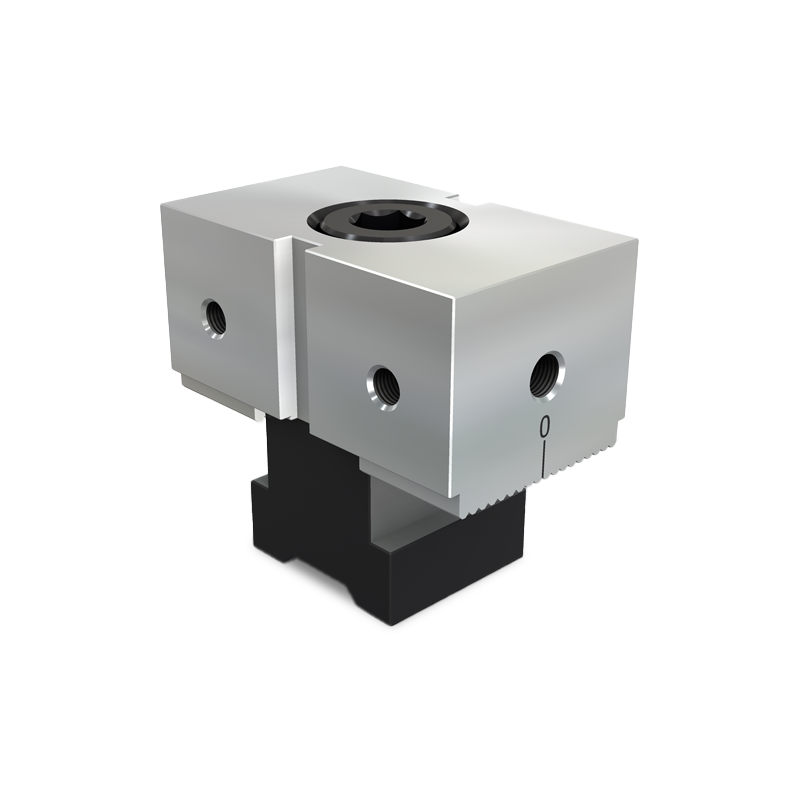

Fixed Jaws

Fixed jaws are available in both standard duty and heavy duty. Step jaw and serrated models are also available.
Soft Jaws

Both the fixed and moveable soft jaws are available in regular and extra wide models, perfect for milling out an exact fit for your parts.

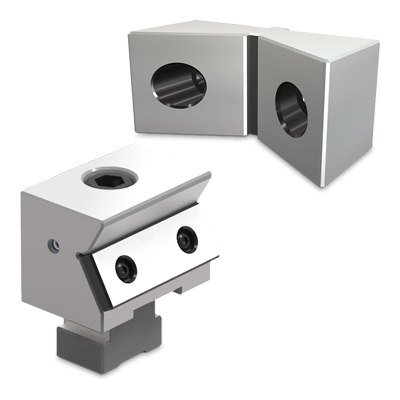

V-Jaws

Hardened V-Jaws are perfect for holding your round parts. Available in both vertical and horizontal models.
Parallels

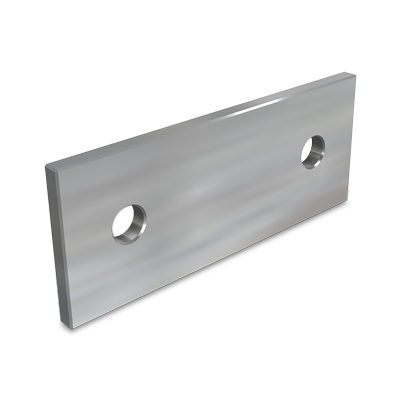

Our S04 Parallels are available in a variety of sizes to give your parts the boost they need.

Work Stops

Work Stops and Spacers are available for fast, accurate position on repetitive work.

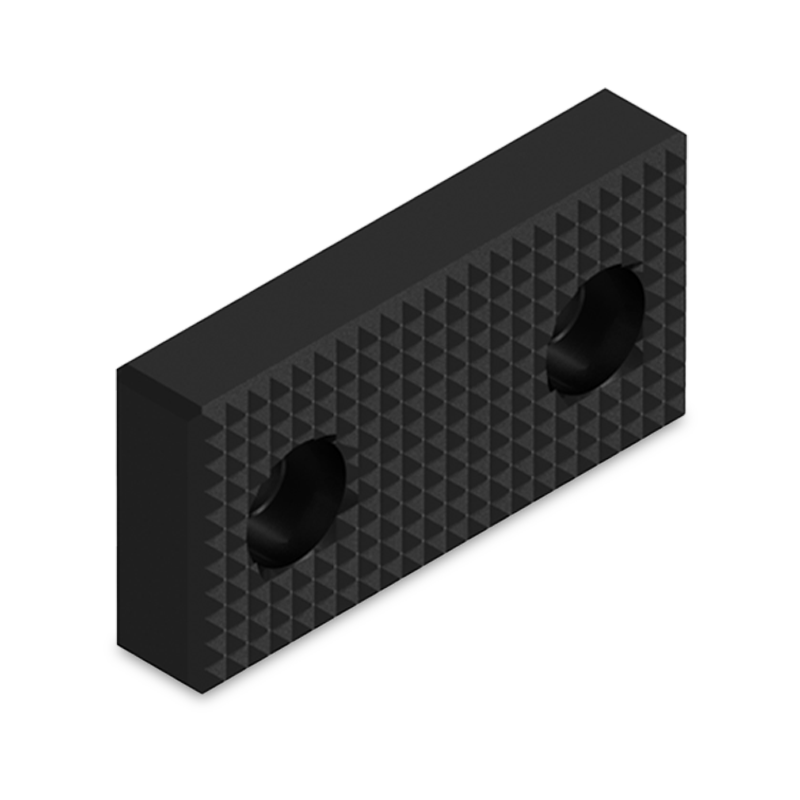

Serrated Pads

Our S08 serrated pads bolt on to our jaws and wedges to give you extra gripping power on your parts.

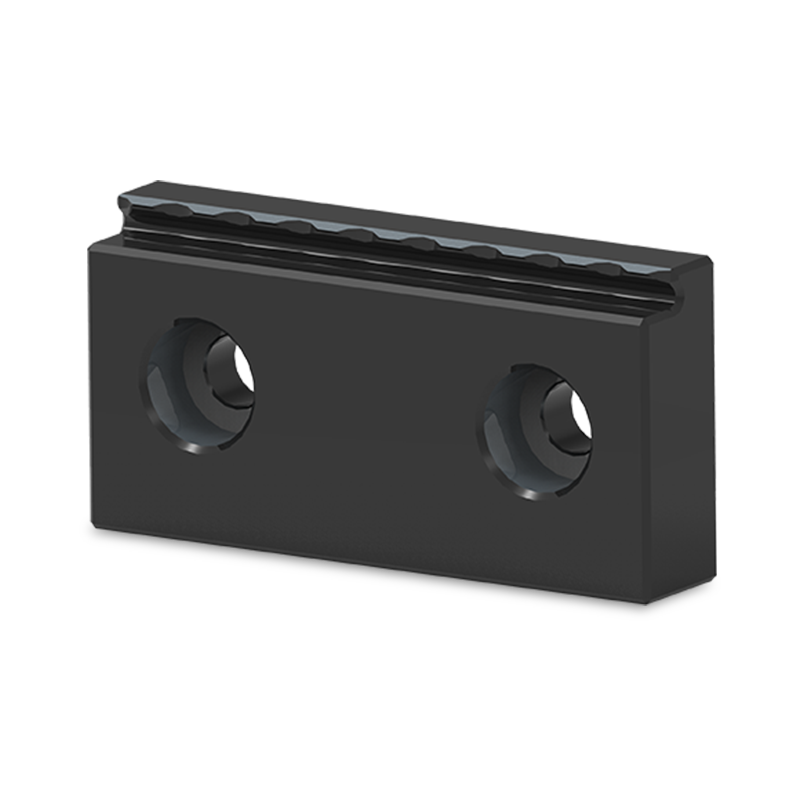

Serrated Step Jaws

Get some extra grip your part and raise it to an adequate height by with our S09 serrated step jaws.

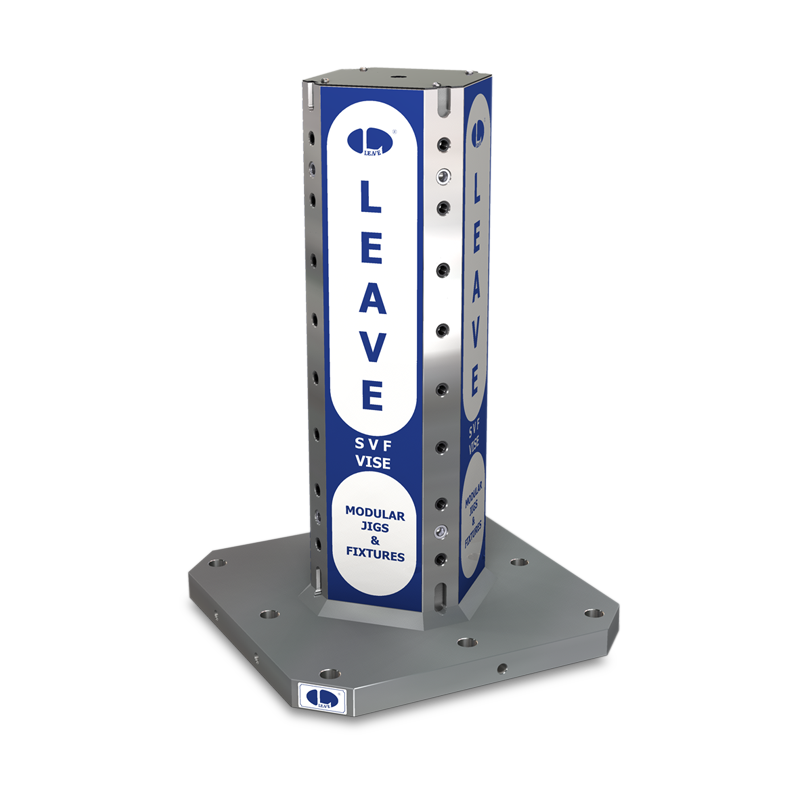

Octagonal Cube

Our CB8 octagonal cube tombstones are designed to vertically mount up to four of our modular vises simultaneously.
